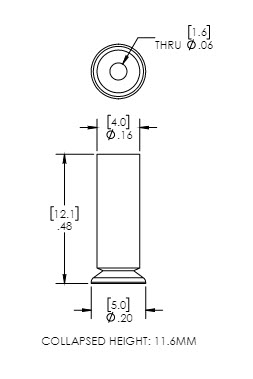

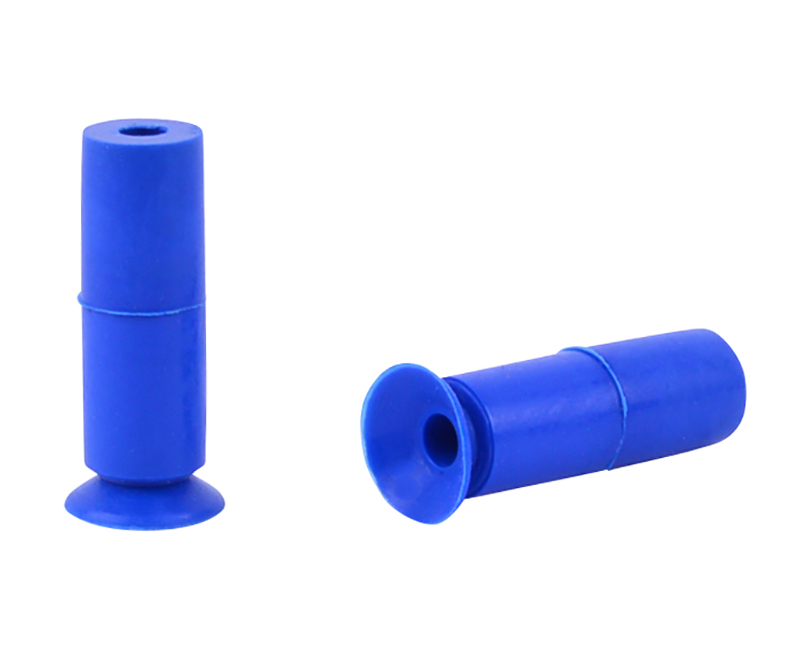

Home > Products > Suction Cups > 10F.005.100.01 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.005.100.01 - 5mm flat blue NBR suction cup (1026) Item#: 10F.005.100.01 Price: £2.90 ea. 5mm flat blue NBR suction cup (1026) General Specifications Style: Flat Cleats: Yes Material: NBR Thread Size: None Outside Diameter: 5.0mm Weight(lbs): .0005 Color: Blue Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.005.100.01    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.03 lbs. 0.01 lbs. 18"Hg 0.10 lbs. 0.05 lbs. 27"Hg 0.16 lbs. 0.08 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: VC-MINI-.199 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: 10F.005.100.01 Related CAD files of Product Dimensional drawing for Item: 10F.005.100.01                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.005.100.01                                No parts or accessories related to this item were found.

---
