Quantity:
Item: VOB8X25-SIT-G18M - 8mm x 25mm oval 2.5 bellows FDA Silicone suction ... (Full Description below)
| |
Item#: VOB8X25-SIT-G18M
Price: £17.81 ea.
|
8mm x 25mm oval 2.5 bellows FDA Silicone suction cup with steel wire reinforcement with G1/8 male fitting
General Specifications
Style: Oval
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Outside Diameter1: 25.0mm
Outside Diameter2: 8mm
Weight(lbs): .0135
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item VOB8X25-SIT-G18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.19 lbs. |
0.09 lbs. |
| 18"Hg |
0.87 lbs. |
0.43 lbs. |
| 27"Hg |
1.31 lbs. |
0.65 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: VOB8X25-SIT-G18M

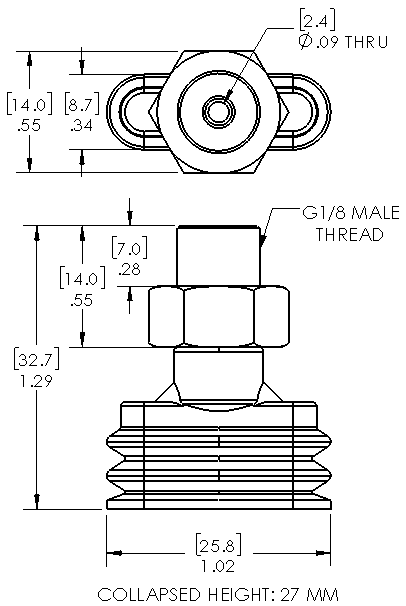

Dimensional drawing for Item: VOB8X25-SIT-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: VOB8X25-SIT-G18M
Fitting Image for 130.095 |
General Specifications
Material: Aluminum
Weight: .0095(lbs)
Dimensions: G1/8" male
Description: G1/8 male fitting
*This fitting is included with the cup(VOB8X25-SIT-G18M)
|
Dimensional Fitting Drawing for 130.095 |
|
|---|
