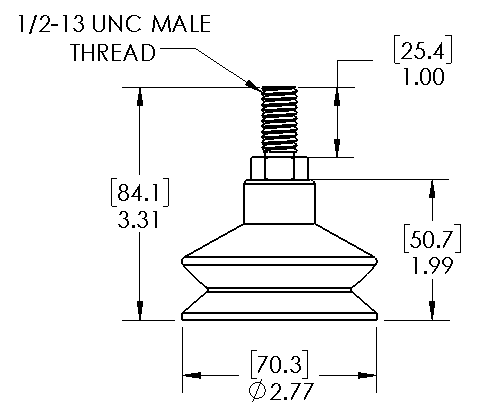

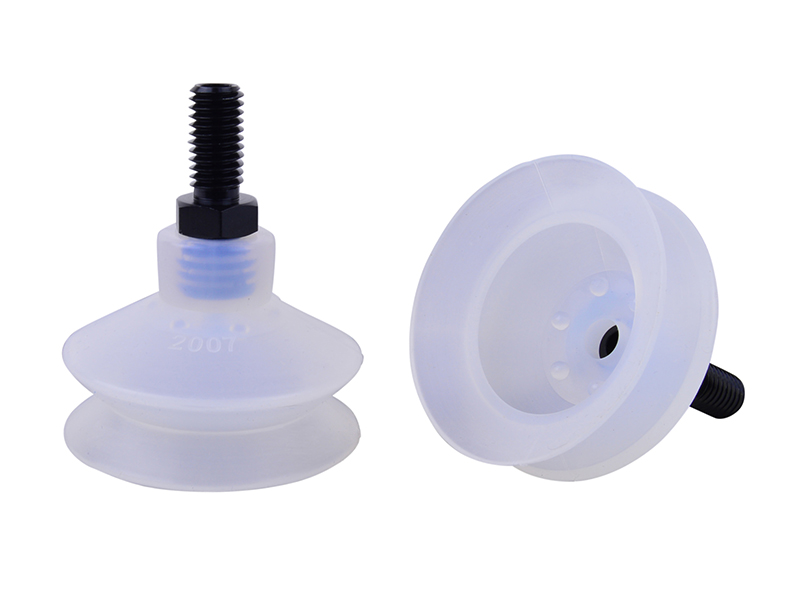

Home > Products > Suction Cups > 15B.071.100.02-12UNCM Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 15B.071.100.02-12UNCM - 71 mm single bellows FDA silicone suction cup ass... (Full Description below) Item#: 15B.071.100.02-12UNCM Price: £13.34 ea. 71 mm single bellows FDA silicone suction cup assembled to barbed fitting with ½-13 UNC male thread General Specifications Style: Bellows Cleats: No Material: Silicone Thread Size: 1/2" male Bellows: 1.5 Outside Diameter: 71.0mm Weight(lbs): .9555 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 15B.071.100.02-12UNCM    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 7.36 lbs. 3.68 lbs. 18"Hg 22.09 lbs. 11.04 lbs. 27"Hg 33.13 lbs. 16.56 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 15B.071.100.02-12UNCM Related CAD files of Product Dimensional drawing for Item: 15B.071.100.02-12UNCM                                Click on the image to enlarge Parts and accessories for Suction Cup: 15B.071.100.02-12UNCM                                Fitting Image for 404.008 Item#: 404.008 compatible with cup #15B.071.100.02-12UNCM General Specifications Material: Aluminum Weight: .0255(lbs) Dimensions: 1/2-13 Male Description: 1/2-13 male barb fitting *This fitting is included with the cup(15B.071.100.02-12UNCM) Dimensional Fitting Drawing for 404.008

---
