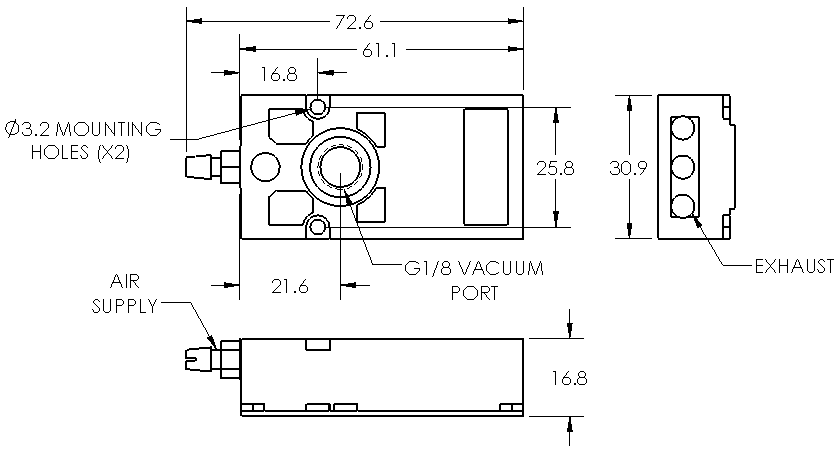

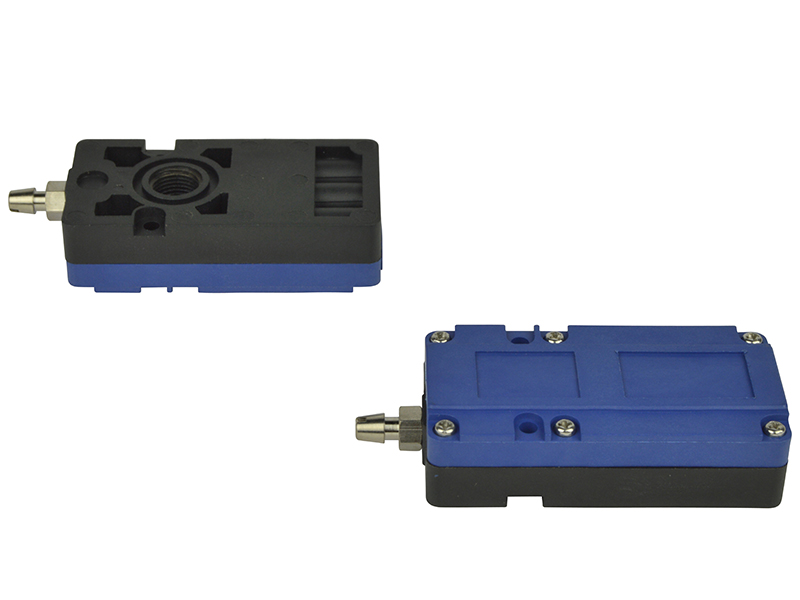

Home > Products > Vacuum Generators > VX10-NA Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VX10-NA - Mini multi stage vacuum generator. M5 air inlet w... (Full Description below) Item#: VX10-NA Price: £37.97 ea. Mini multi stage vacuum generator. M5 air inlet with 1/8 NPSF vacuum port. 1.83 scfm vacuum flow and 27.5 Hg General Specifications Vacuum Flow(SCFM): 1.8 Vacuum Port: 1/8" NPSF Supply Port: M5 Air Consumption: 1.09 Max Vac -inHg": 27 Weight(lbs)": 0.072   Recommended replacement for: X10A5-AN, 3222157, 3222097/1, 3222097, X10L, 3222097, x10a6-an Additional Information No additional information available for this item CAD files for this Product N/A Vacuum flow(scfm at vac level)Evacuation time(s/cf to vac level)Vacuum flow(Nl/s at vac level)Evacuation time(s/l to vac level) Supply Press (PSI) Max Vacuum "Hg 0"Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 65 27.5 1.83 0.85 0.63 0.53 0.46 0.37 0.28 0.21 0.09 0.03 Supply Press (PSI) Max Vacuum "Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 65 27.5 3.12 8.52 18.46 31.24 44.02 61.06 80.94 133.48 289.68 Supply Press (Bar) Air Cons L/min Max Vacuum "Hg 0 Kpa 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa 4.5 31 27 52 24 18 15 13 10.5 8 6 2.5 0.8 Supply Press (Bar) Max Vacuum "Hg 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa 4.5 27.5 0.3 0.65 1.1 1.55 2.15 2.85 4.7 0.11 10.2 Dimensional drawing for Item: VX10-NA                                Click on the image to enlarge Parts and accessories for Item: VX10-NA

---
