| Regulator Image | Description / Model # | Price | Type | Vacuum Port | Vacuum Flow | Air Consumption | Max Vac -"Hg | Dimensional Drawing |
|
|

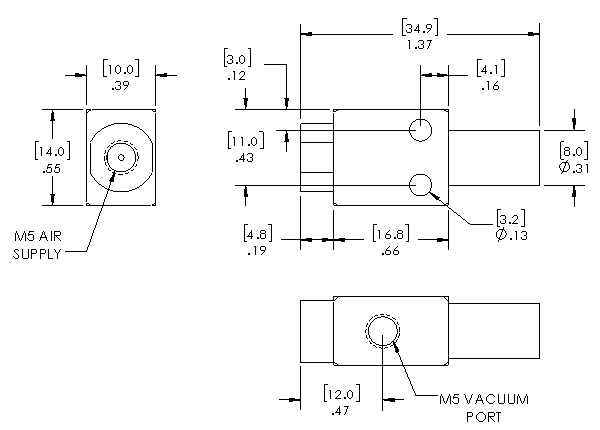

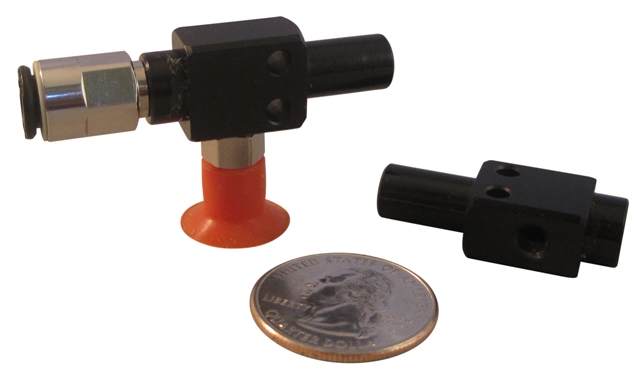

Model #: SSV-2.5
Mini vacuum generator. 0.088 scfm, max vacuum 25Hg
|
£17.06
|
Single Stage Vacuum Generator
|
M5
|
0.1
|
.25
|
25.0
|
|
|
|

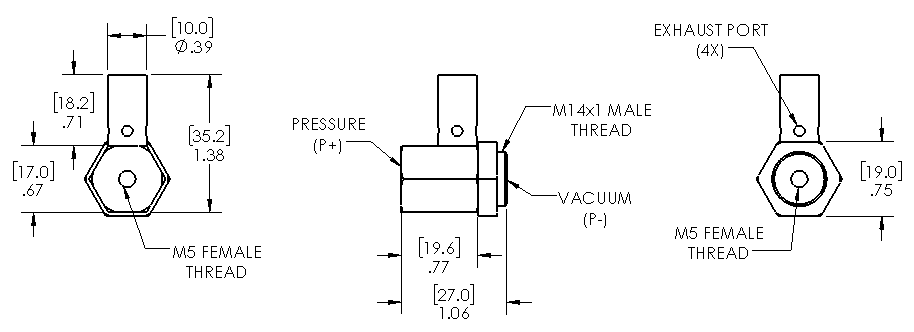

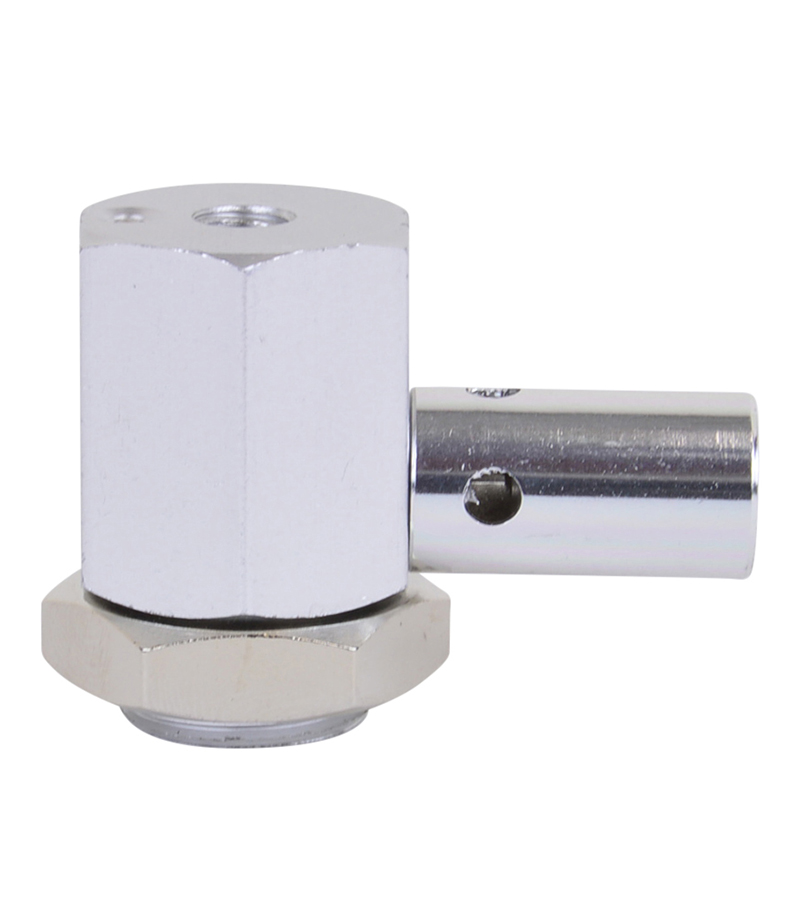

Model #: SSV-14-M5
Compact inline vacuum generator with silencer. M5 supply and vacuum ports. 0.50 scfm
|
£18.81
|
Single Stage Vacuum Generator
|
M5
|
0.5
|
.50
|
26.0
|
|
|
|

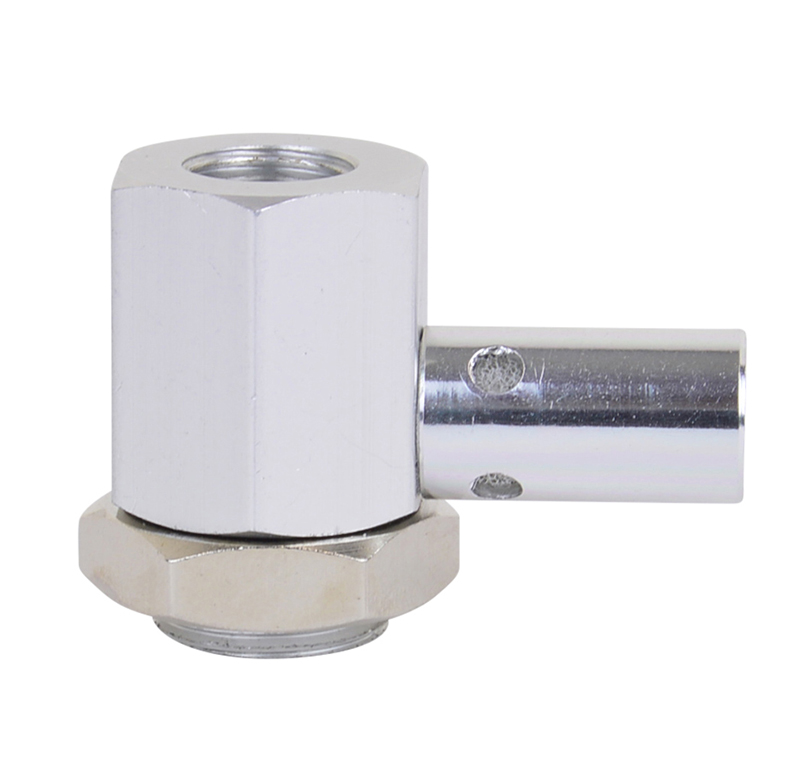

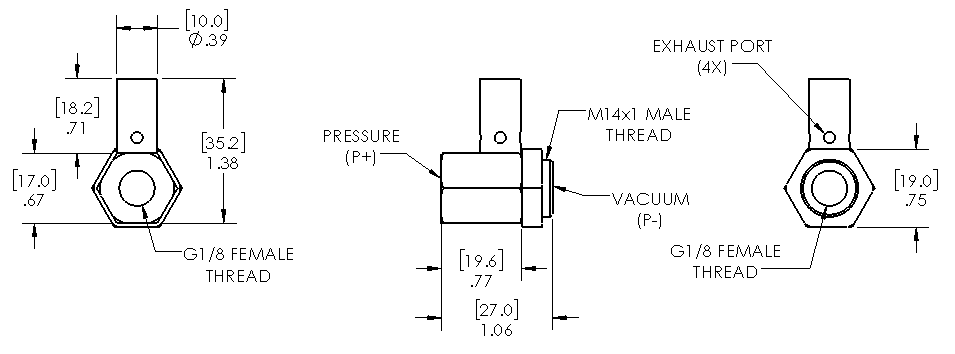

Model #: SSV-21-G18
Compact inline vacuum generator with silencer. G1/8 supply and vacuum ports. 0.74 scfm
|
£18.81
|
Single Stage Vacuum Generator
|
G1/8"
|
0.7
|
.74
|
26.0
|
|
|
|

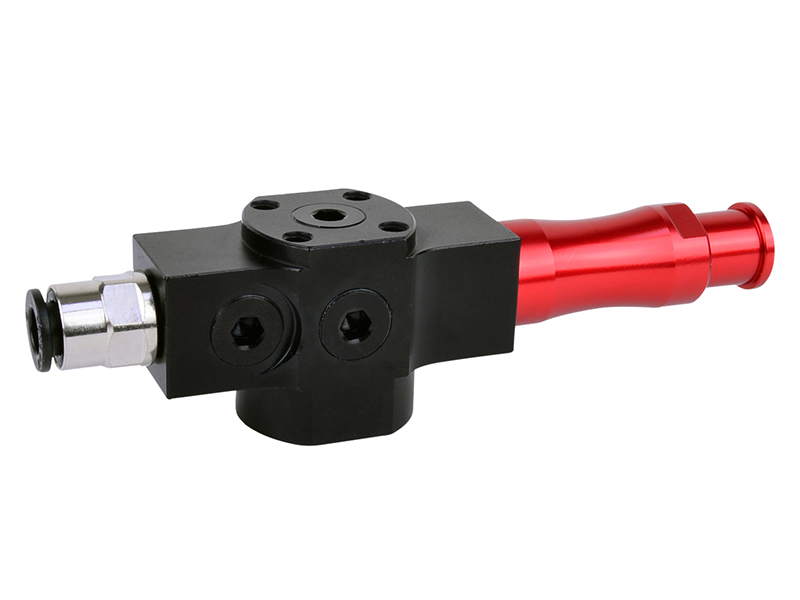

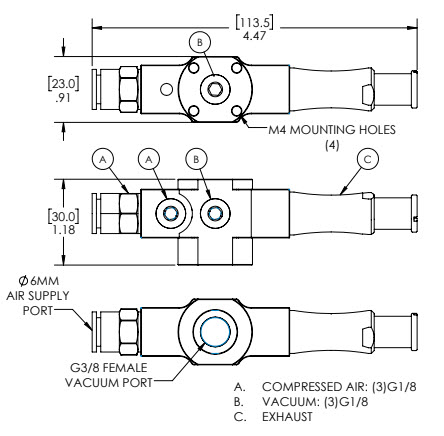

Model #: MSVG-68M
Multi-stage vacuum generator. 2.40 SCFM, 22 Hg (includes 4x M4 top, flush mount screws)
|
£96.25
|
Multi-Stage Vacuum Generator
|
G3/8"
|
2.4
|
.95
|
22.0
|
|
|
|

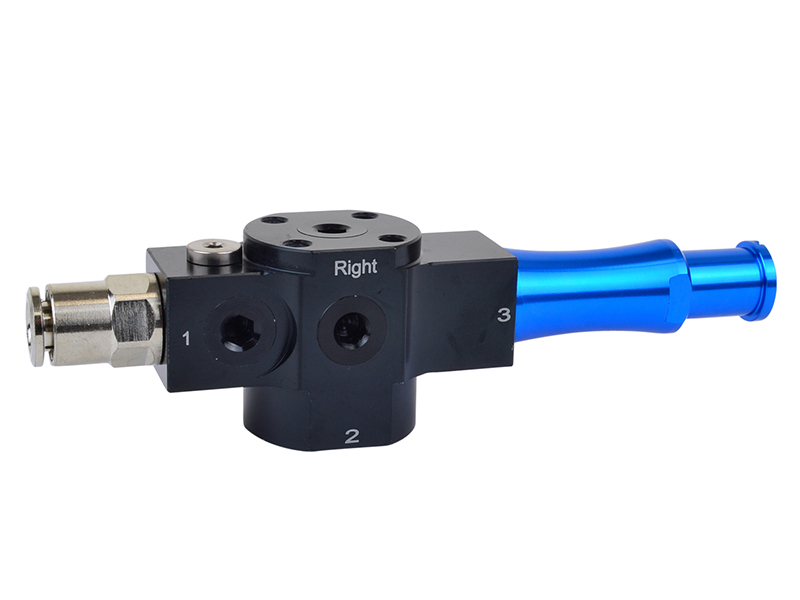

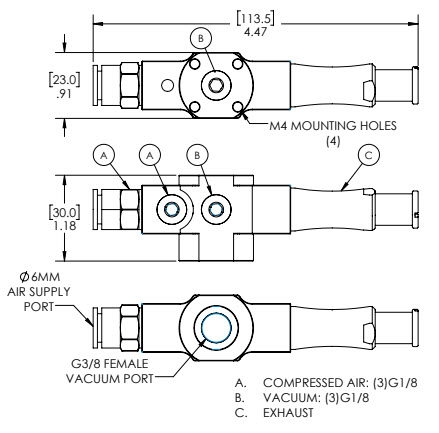

Model #: MSVG-68H
Multi-stage vacuum generator. 2.40 SCFM. 27.5 Hg (includes 4x M4 top, flush mount screws)
|
£96.25
|
Multi-Stage Vacuum Generator
|
G3/8"
|
2.3
|
1.06
|
27.5
|
|
|
|

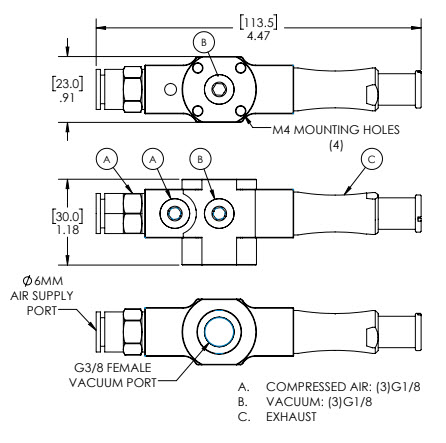

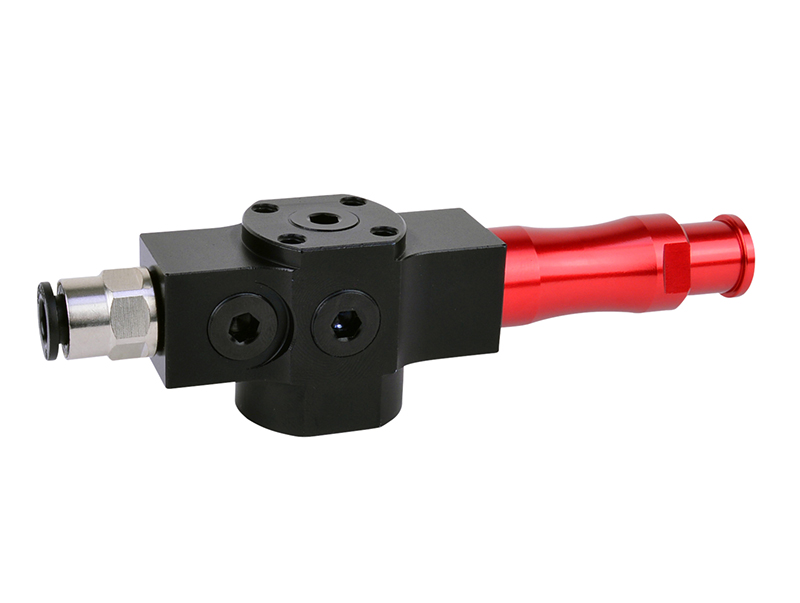

Model #: MSVG-68HL
Multi-stage vacuum generator. 2.40 SCFM. 26.5 Hg. Low pressure (25-58 psi). Includes 4x M4 top, flush mount screws.
|
£96.25
|
Multi-Stage Vacuum Generator
|
G3/8"
|
2.2
|
1.02
|
26.5
|
|
|
|

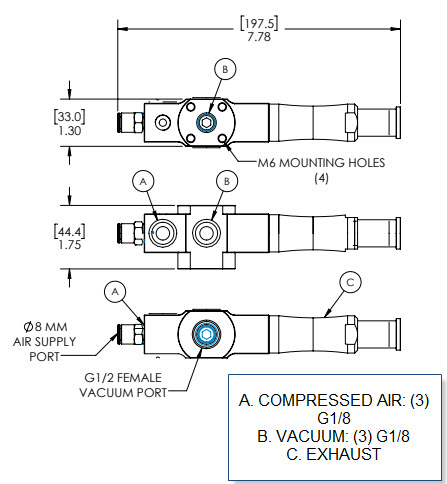

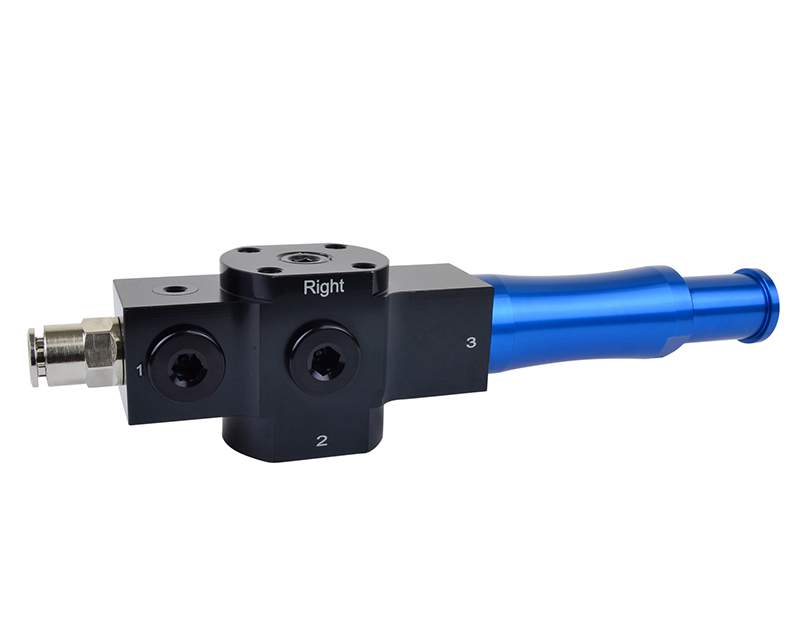

Model #: MSVG-360M
Multi-stage vacuum generator. 12.7 SCFM. 22 Hg (includes 4x M6 top, flush mount screws)
|
£218.75
|
Multi-Stage Vacuum Generator
|
G1/2"
|
13.8
|
4.59
|
26.5
|
|
|
|

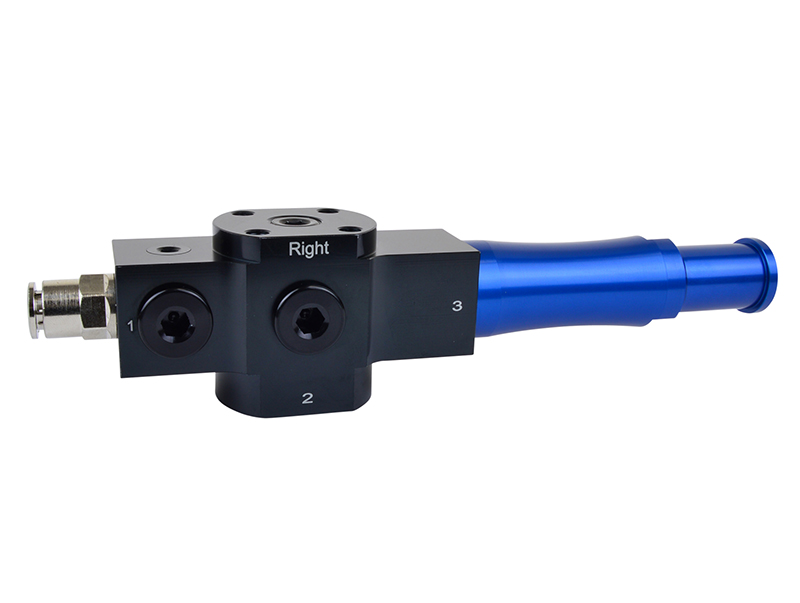

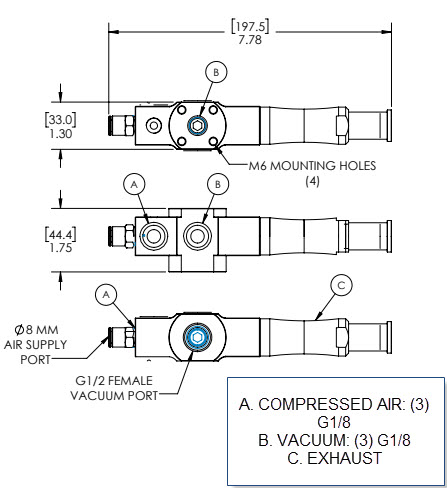

Model #: MSVG-372H
Multi-stage vacuum generator. 13.1 SCFM. 28 Hg (includes 4x M6 top, flush mount screws)
|
£218.75
|
Multi-Stage Vacuum Generator
|
G1/2"
|
12.7
|
4.41
|
28.0
|
|
|
|

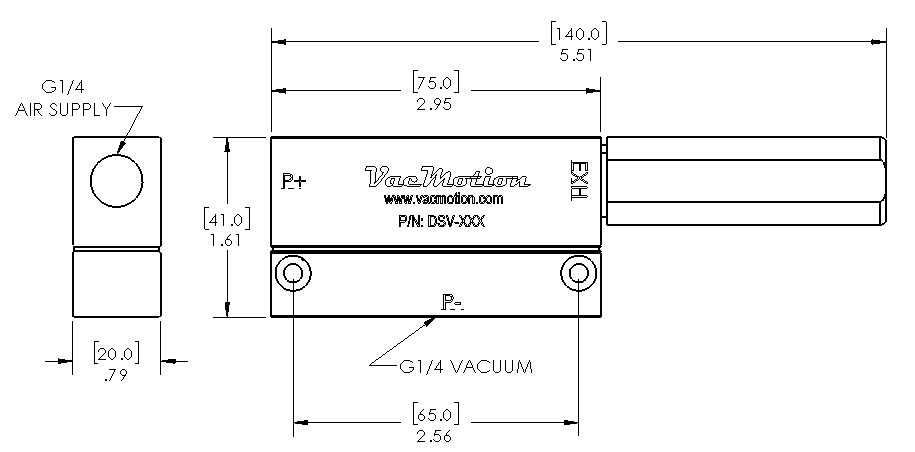

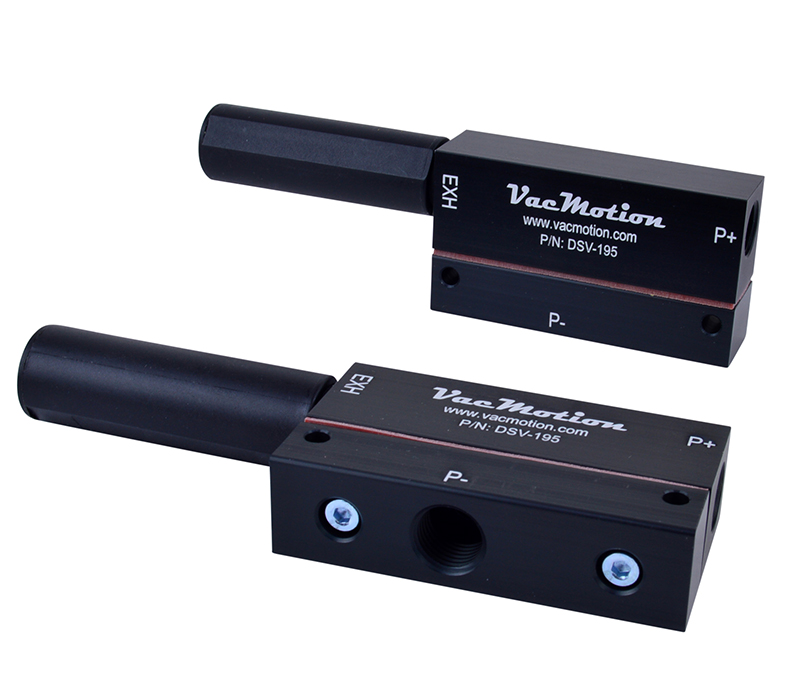

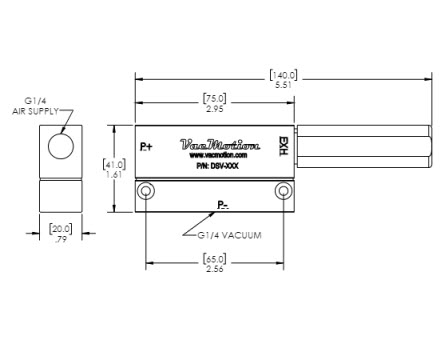

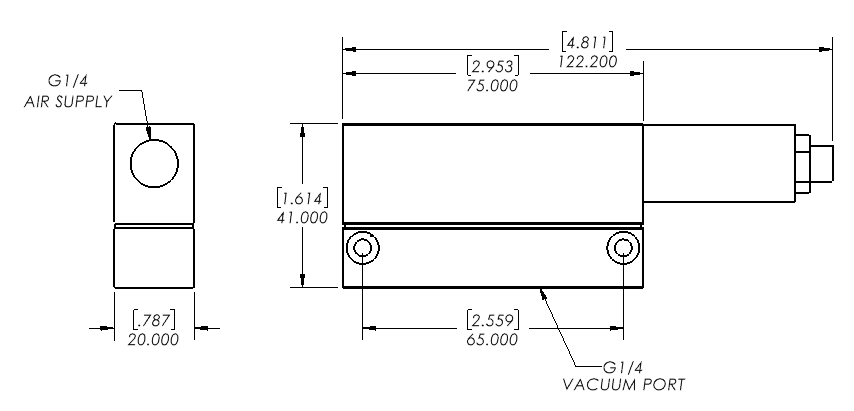

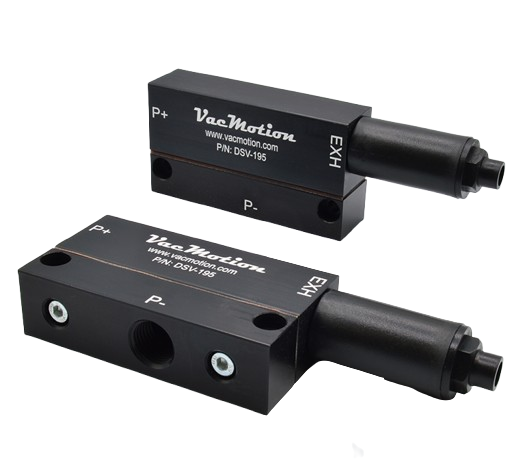

Model #: DSV-195
Vacuum Generator, 1.94 SCFM flow, 26.4Hg, with Silencer
|
£91.29
|
Multi-Stage Vacuum Generator
|
G1/4"
|
1.9
|
.99
|
26.4
|
|
|
|

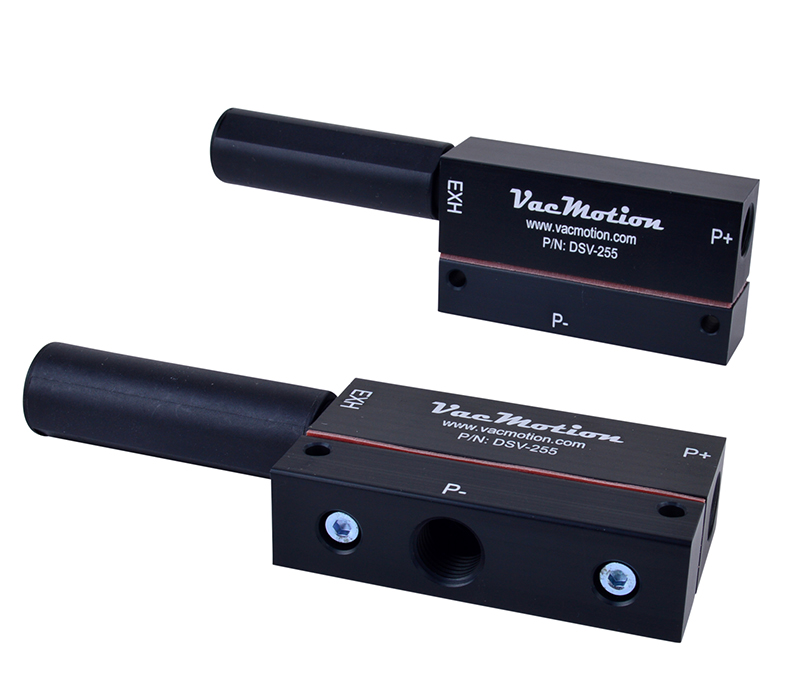

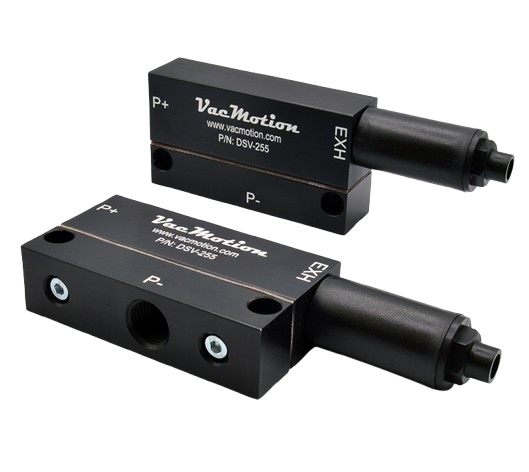

Model #: DSV-255
Vacuum Generator, 2.57 SCFM flow, 26.5Hg, with Silencer
|
£93.27
|
Multi-Stage Vacuum Generator
|
G1/4"
|
2.6
|
1.77
|
26.5
|
|
|
|

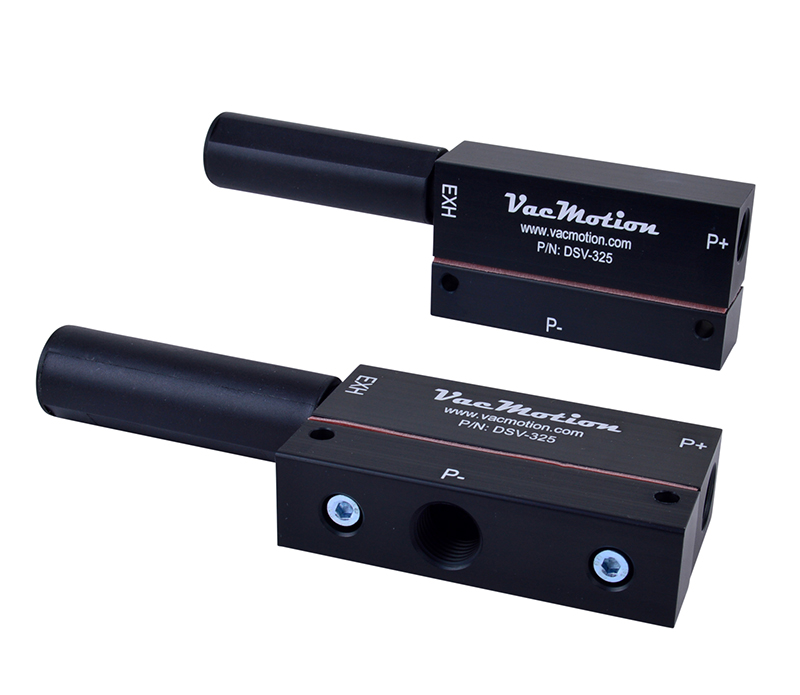

Model #: DSV-325
Vacuum Generator, 3.25 SCFM flow, 26.0Hg, with Silencer
|
£95.25
|
Multi-Stage Vacuum Generator
|
G1/4"
|
3.3
|
1.77
|
26.0
|
|
|
|

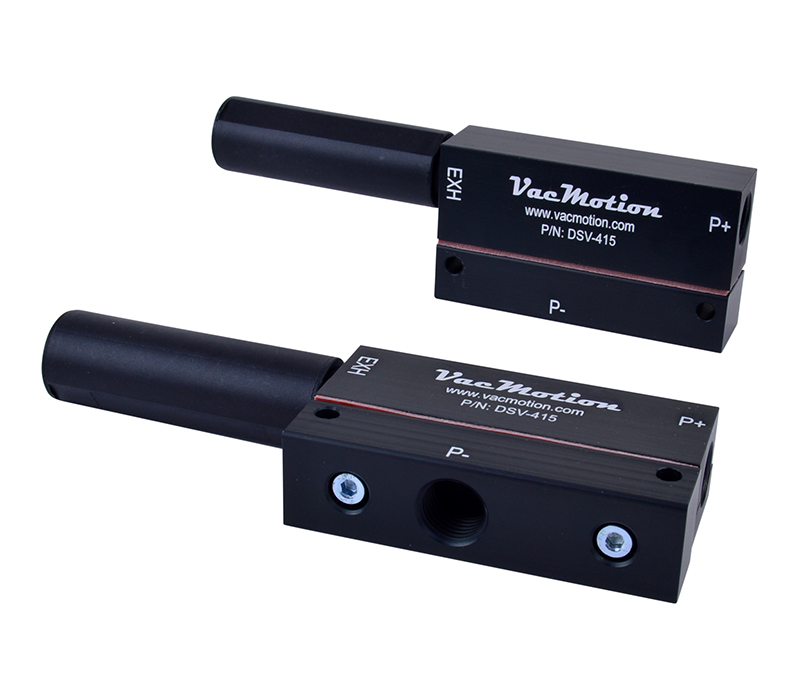

Model #: DSV-415
Vacuum Generator, 4.13 SCFM flow, 25.7Hg, with Silencer
|
£100.45
|
Multi-Stage Vacuum Generator
|
G1/4"
|
4.1
|
2.93
|
|
|
|
|

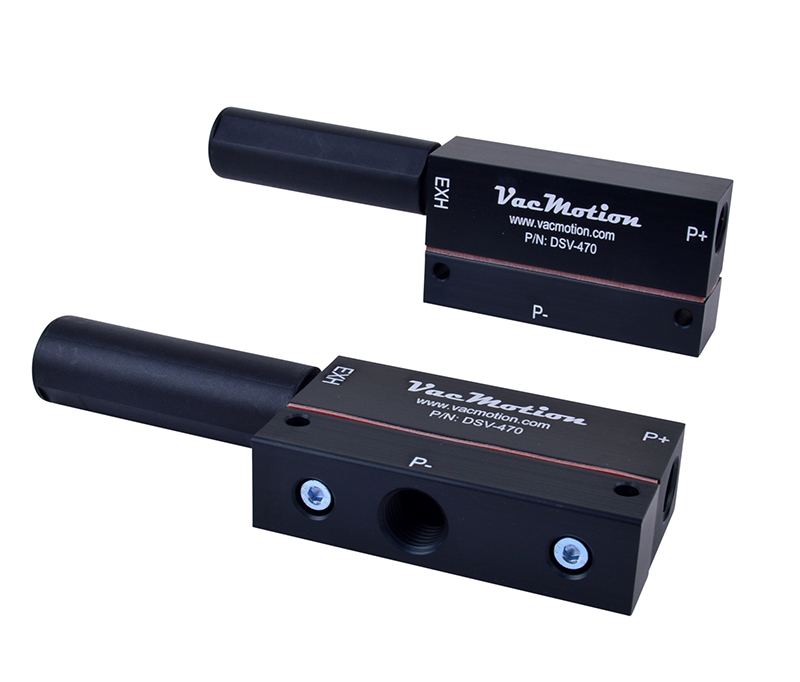

Model #: DSV-470
Vacuum Generator, 4.70 SCFM flow, 26.8Hg, with Silencer
|
£101.20
|
Multi-Stage Vacuum Generator
|
G1/4"
|
4.7
|
3.99
|
26.8
|
|
|
|

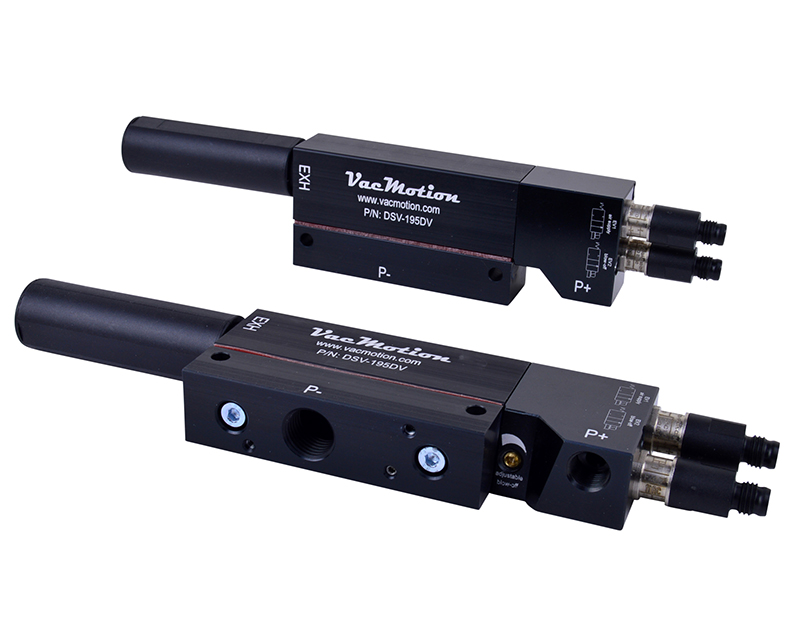

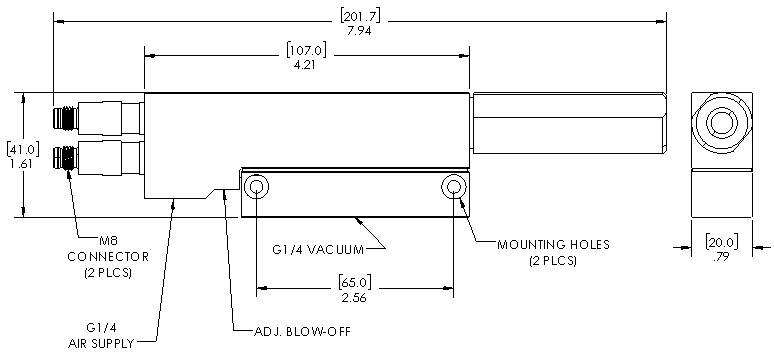

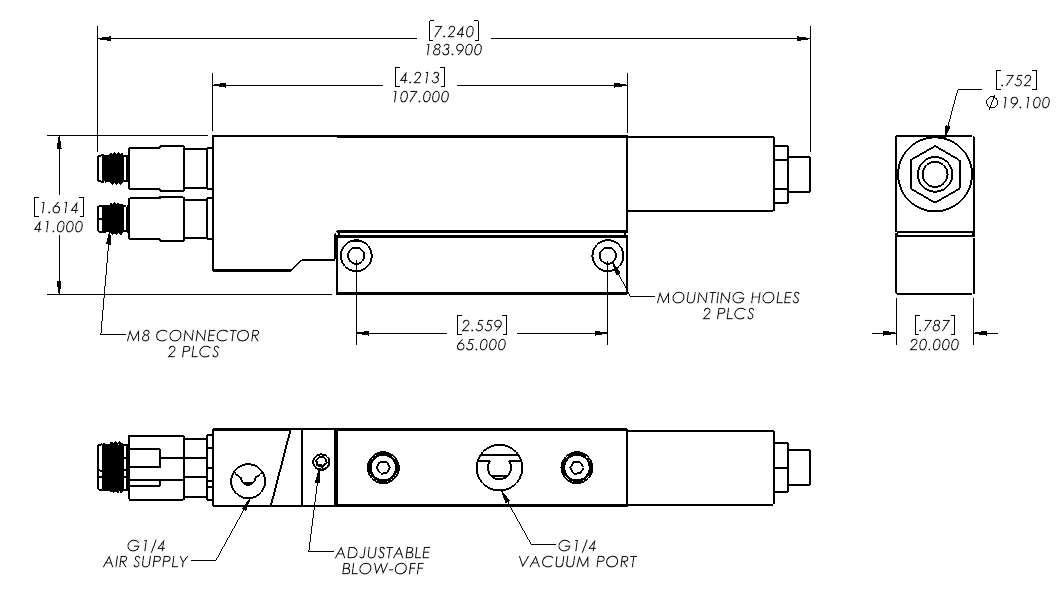

Model #: DSV-195-DV
Vacuum Generator, 1.94 SCFM flow, 26.4Hg, with supply and blow off valve and Silencer
|
£415.87
|
Multi-Stage Vacuum Generator
|
G1/4"
|
1.9
|
0.99
|
26.4
|
|
|
|

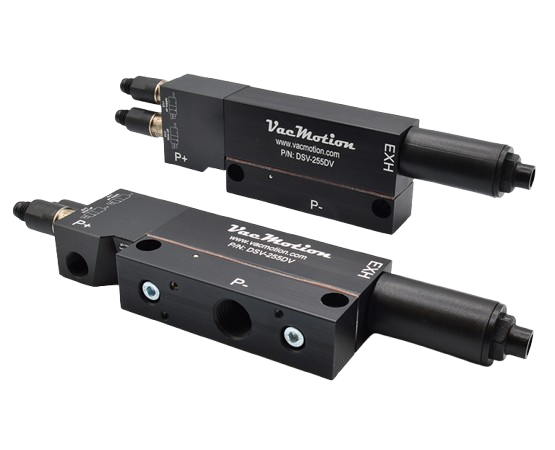

Model #: DSV-255-DV
Vacuum Generator, 2.57 SCFM flow, 26.5Hg, with supply and blow off valve and Silencer
|
£417.85
|
Multi-Stage Vacuum Generator
|
G1/4"
|
2.6
|
1.77
|
26.5
|
|
|
|

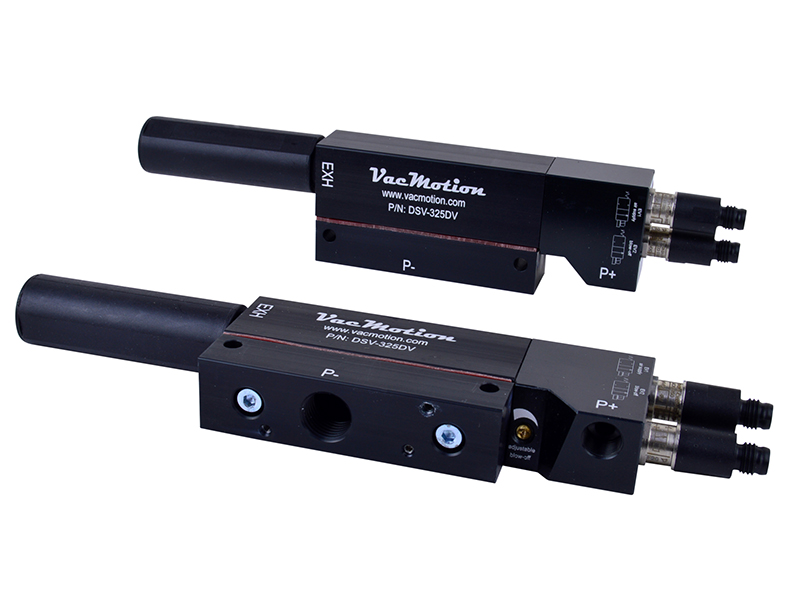

Model #: DSV-325-DV
Vacuum Generator, 3.25 SCFM flow, 26Hg, with supply and blow off valve and Silencer
|
£419.84
|
Multi-Stage Vacuum Generator
|
G1/4"
|
3.3
|
1.77
|
26.0
|
|
|
|

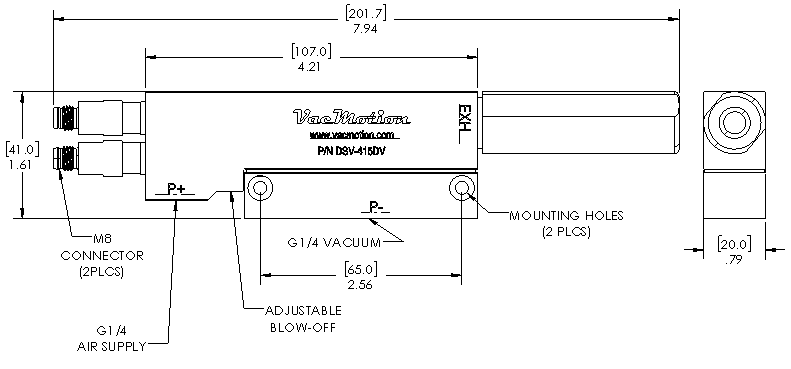

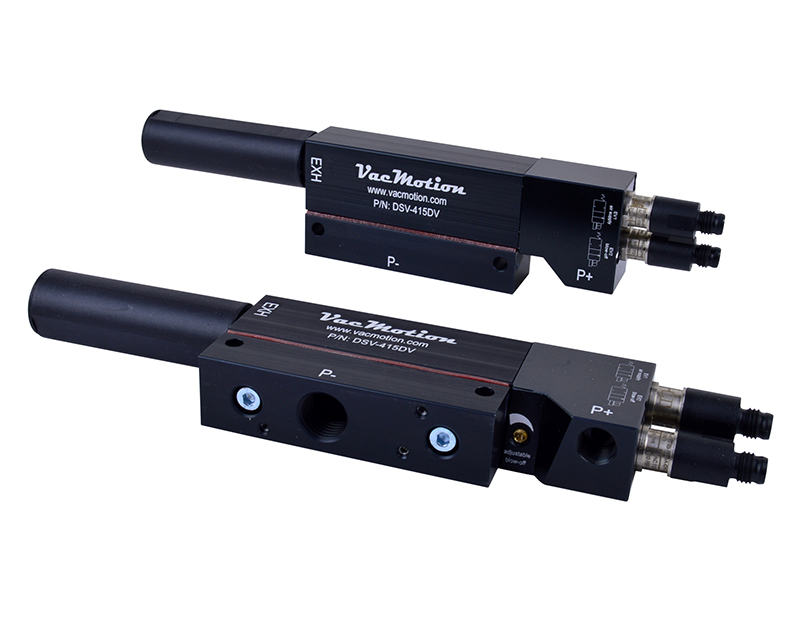

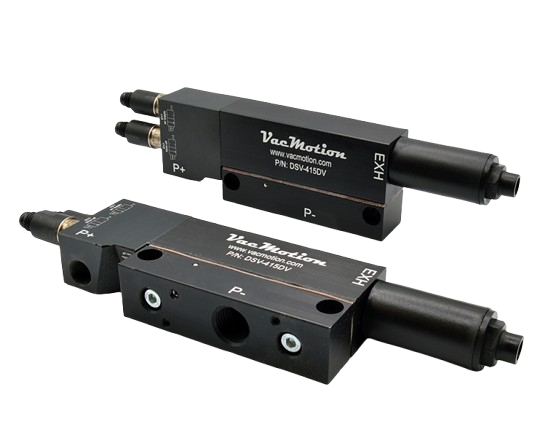

Model #: DSV-415-DV
Vacuum Generator, 4.13 SCFM flow, 25.6Hg, with supply and blow off valve and Silencer
|
£424.47
|
Multi-Stage Vacuum Generator
|
G1/4"
|
4.1
|
2.93
|
25.6
|
|
|
|

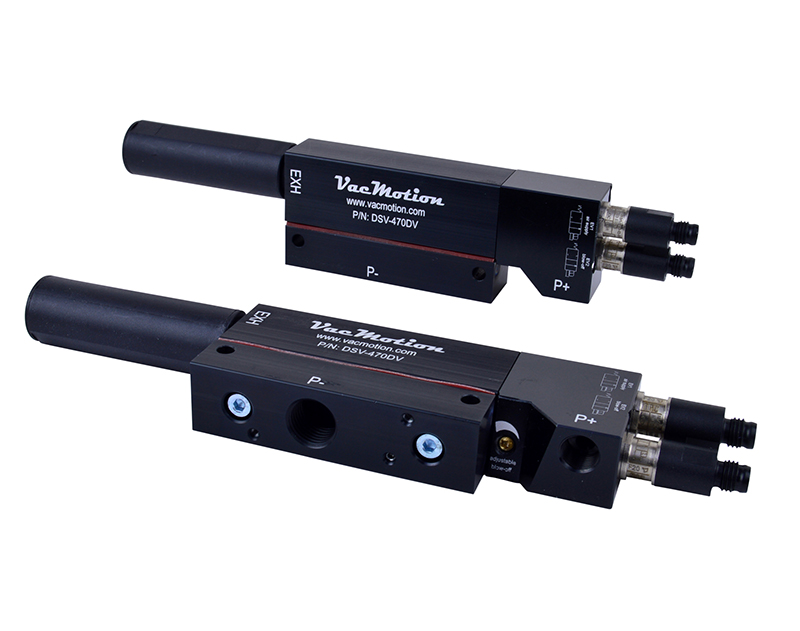

Model #: DSV-470-DV
Vacuum Generator, 4.70 SCFM flow, 26.8Hg, with supply and blow off valve and Silencer
|
£425.23
|
Multi-Stage Vacuum Generator
|
G1/4"
|
4.7
|
3.99
|
26.8
|
|
|
|

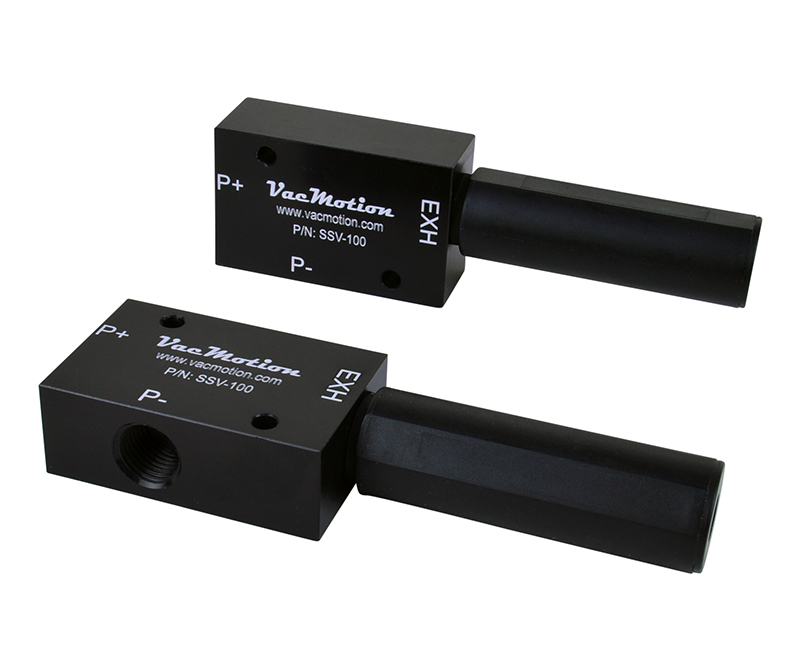

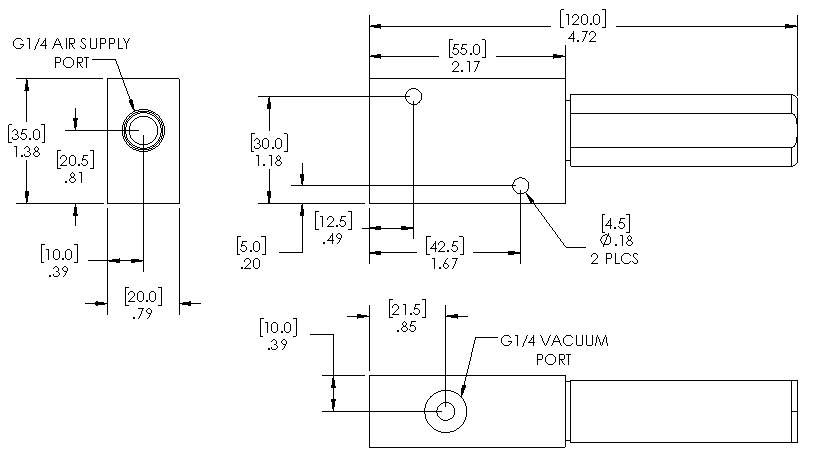

Model #: SSV-100
SINGLE STAGE VACUUM GENERATOR, 26.5Hg w/ Silencer
|
£54.87
|
Single Stage Vacuum Generator
|
G 1/4"
|
1.0
|
1.6
|
26.5
|
|
|
|

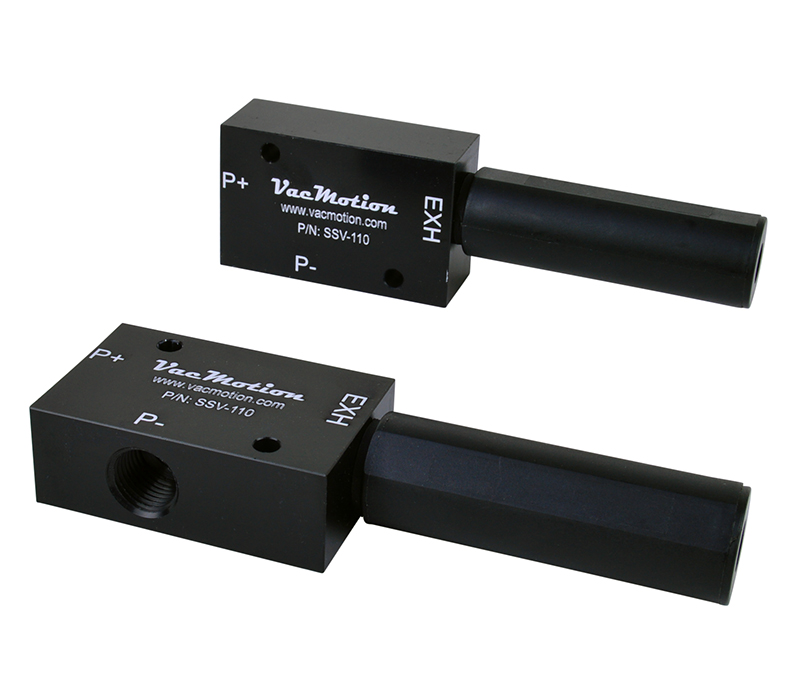

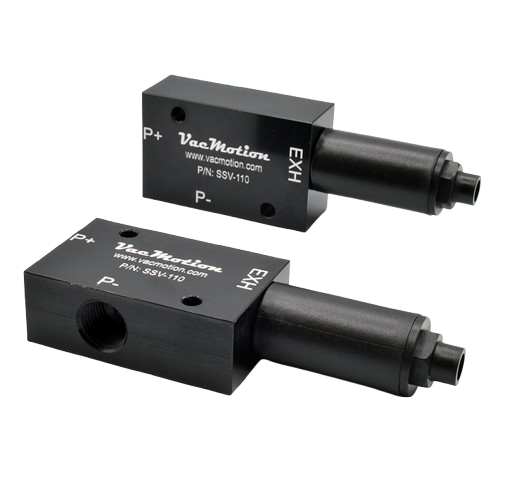

Model #: SSV-110
Single Stage Vacuum Generator, 26Hg w/ Silencer
|
£56.82
|
Single Stage Vacuum Generator
|
G 1/4"
|
1.1
|
1.6
|
26.0
|
|
|
