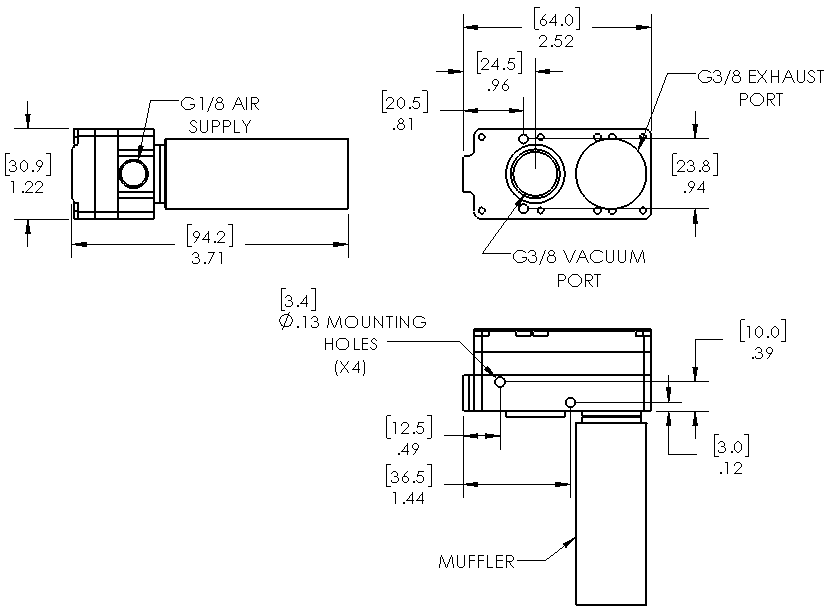

Home > Products > Vacuum Generators > VM20-NC Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VM20-NC - Mini multi stage vacuum generator. 1/8 NPSF air i... (Full Description below) Item#: VM20-NC Price: £54.60 ea. Mini multi stage vacuum generator. 1/8 NPSF air inlet with 3/8 NPSF vacuum port. 4.96 scfm vacuum flow and 25.1 Hg General Specifications Vacuum Flow(SCFM): 5.0 Vacuum Port: 3/8" NPSF Supply Port: 1/8" NPSF Air Consumption: 1.94 Max Vac -inHg": 24 Weight(lbs)": 0.15   Recommended replacement for: M20A5-CN, 0102767, M20L, M20, L20, M20A6-CN Additional Information No additional information available for this item CAD files for this Product Vacuum flow(scfm at vac level)Evacuation time(s/cf to vac level)Vacuum flow(Nl/s at vac level)Evacuation time(s/l to vac level) Supply Press (PSI) Max Vacuum "Hg 0"Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 65 25.1 4.96 2.71 1.58 1.39 1.04 0.88 0.62 0.42 .011 Supply Press (PSI) Max Vacuum "Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 65 25.1 1.14 3.41 6.53 11.64 18.46 26.41 37.77 57.65 Supply Press (Bar) Air Cons L/min Max Vacuum "Hg 0 Kpa 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa 4.5 55 24 141 77 45 39.5 29.5 25 17.5 12 3 Supply Press (Bar) Max Vacuum "Hg 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa 4.5 25.1 0.12 0.23 0.41 0.65 0.93 1.33 2.03 0.04 Dimensional drawing for Item: VM20-NC                                Click on the image to enlarge Parts and accessories for Item: VM20-NC

---
