| Regulator Image | Description / Model # | Price | Type | Operating Pressure(PSI) | Closing Force(N) | Dimensional Drawing |
|
|

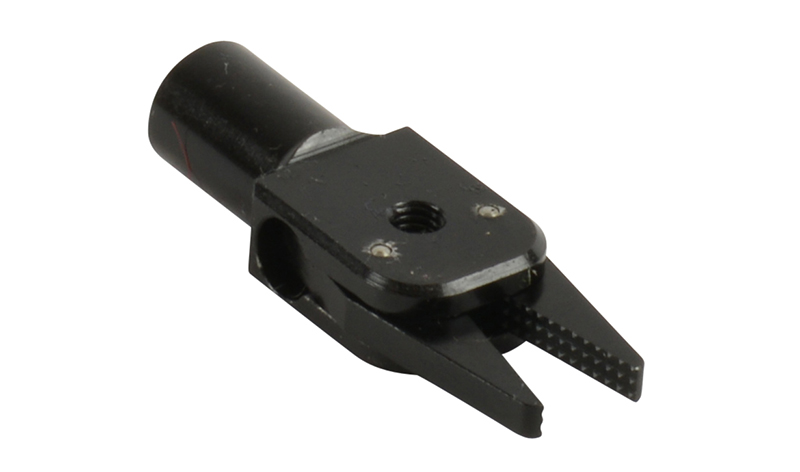

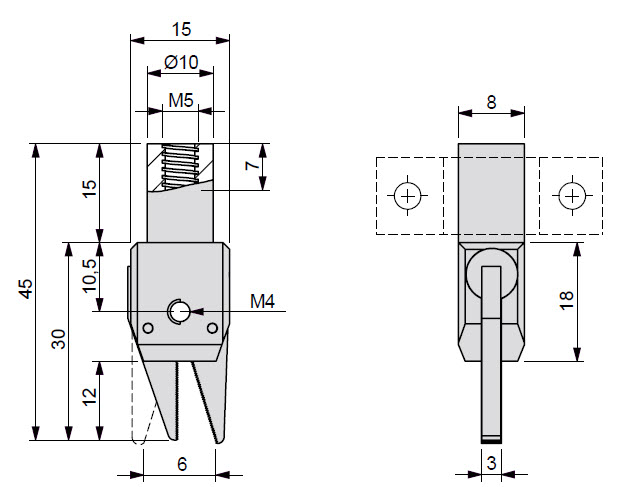

Model #: MG.3010
(Sprue gripper)
Gripper Micro, gripping force: 10 N.
|
£91.87
|
Sprue gripper
|
87 PSI
|
10 N.
|
|
|
|

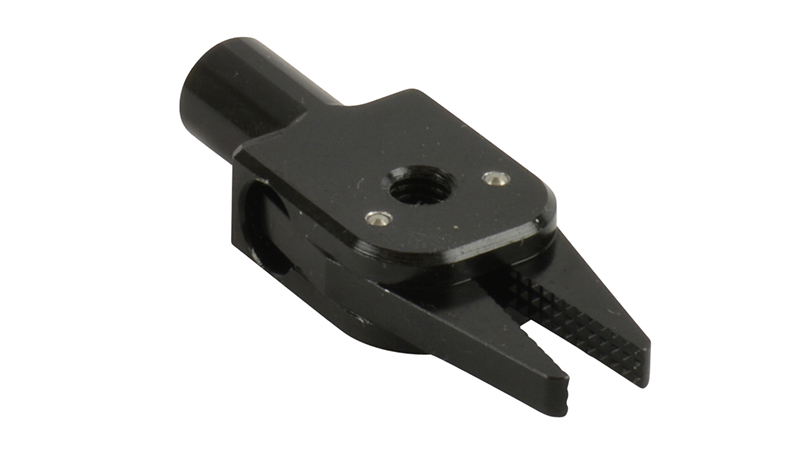

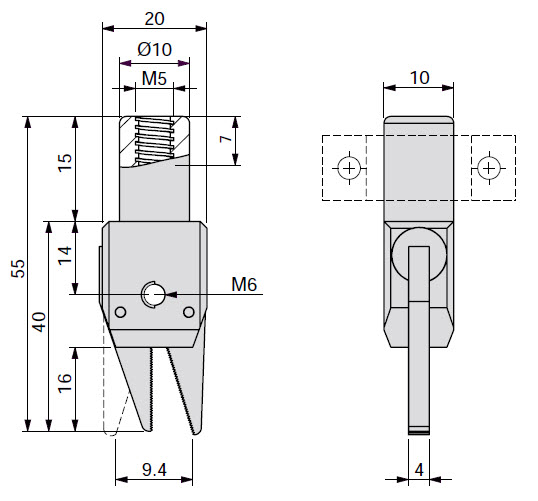

Model #: MG.4010
(Sprue gripper)
Gripper Mini, lifting force: 15 N.
|
£91.87
|
Sprue gripper
|
87 PSI
|
15 N.
|
|
|
|

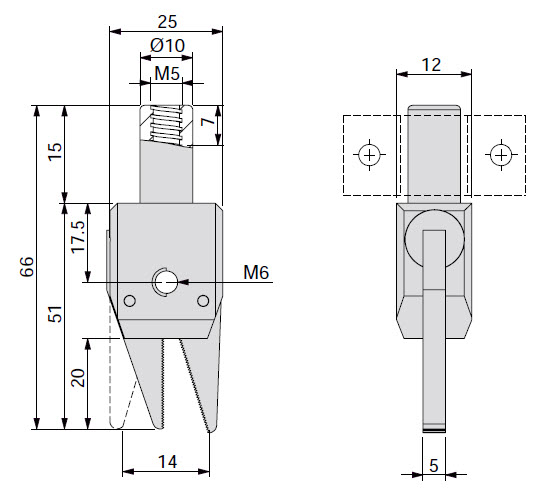

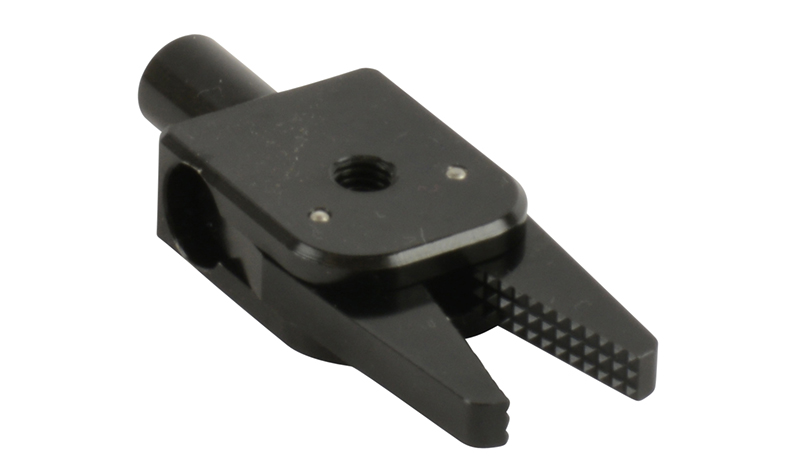

Model #: MG.5010
(Sprue gripper)
Gripper Midi, lifting force: 23 N.
|
£96.77
|
Sprue gripper
|
87 PSI
|
23 N.
|
|
|
|

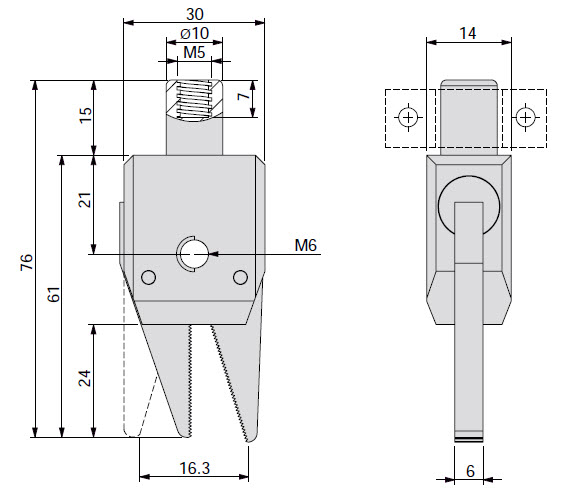

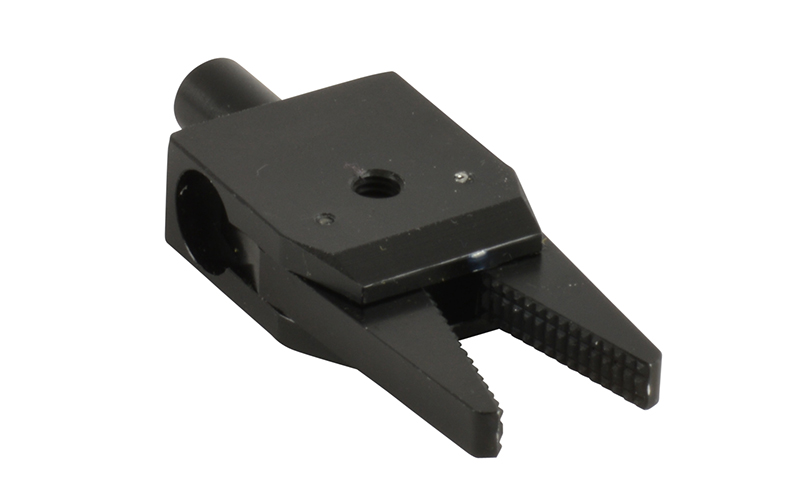

Model #: MG.6010
(Sprue gripper)
Gripper Maxi, lifting force: 31 N.
|
£96.77
|
Sprue gripper
|
87 PSI
|
31 N.
|
|
|
|

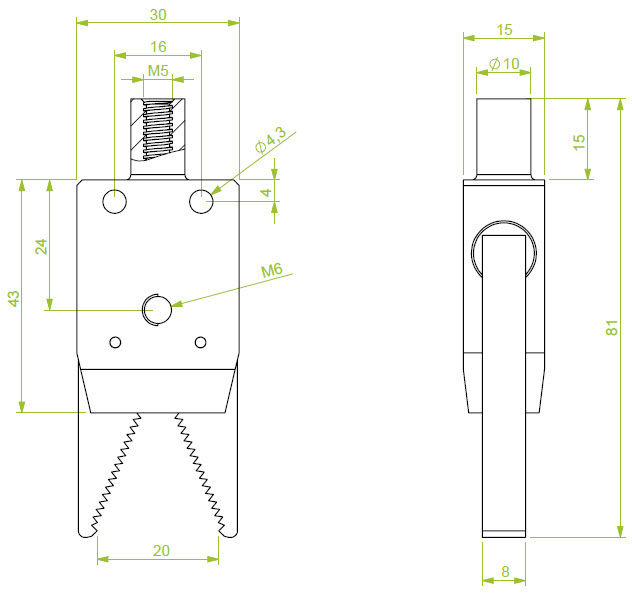

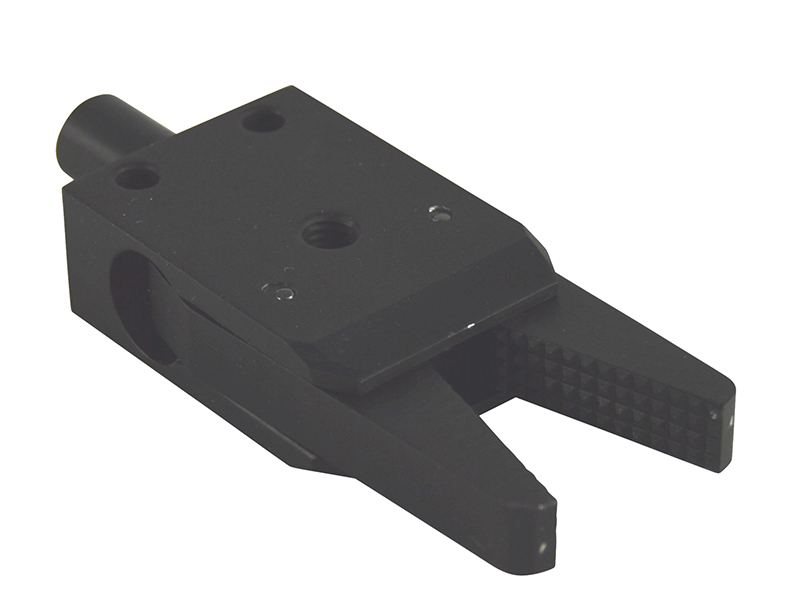

Model #: MG.6510
(Sprue gripper)
Griper, lifting force: 31 N, Length: 81mm, with two additional bore holes, diameter 4,3mm. Max air pressure 6 bar.
|
£132.30
|
Sprue gripper
|
87 PSI
|
31 N.
|
|
|
|

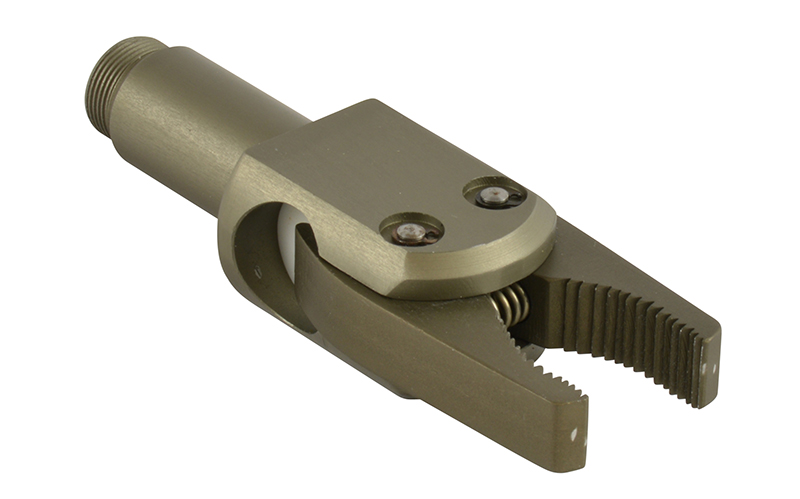

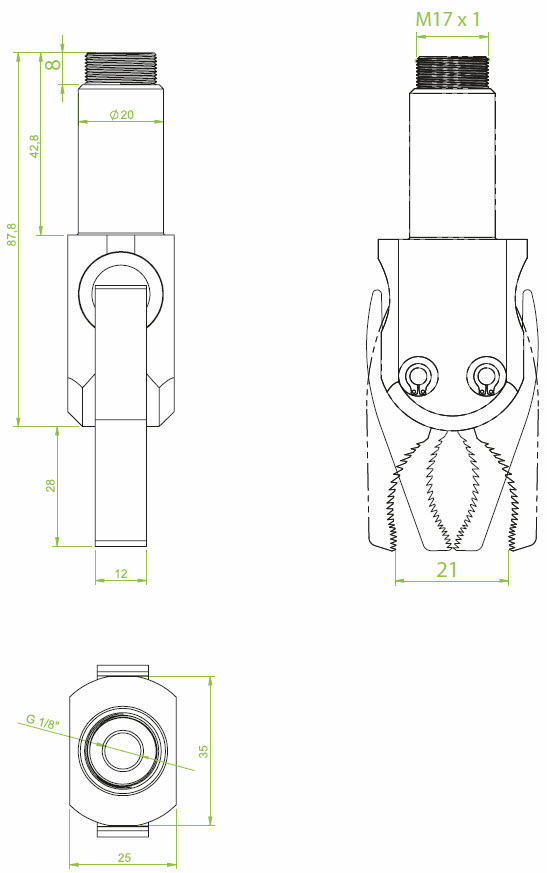

Model #: GK.20.013
(Gripper)
Griper with curved jaws, single acting, NO, clamping D= 20 mm, air inlet female thr. G 1/8, grip force at 6 bar = 95 N.
|
£212.78
|
Gripper
|
87 PSI
|
95 N.
|
|
|
|

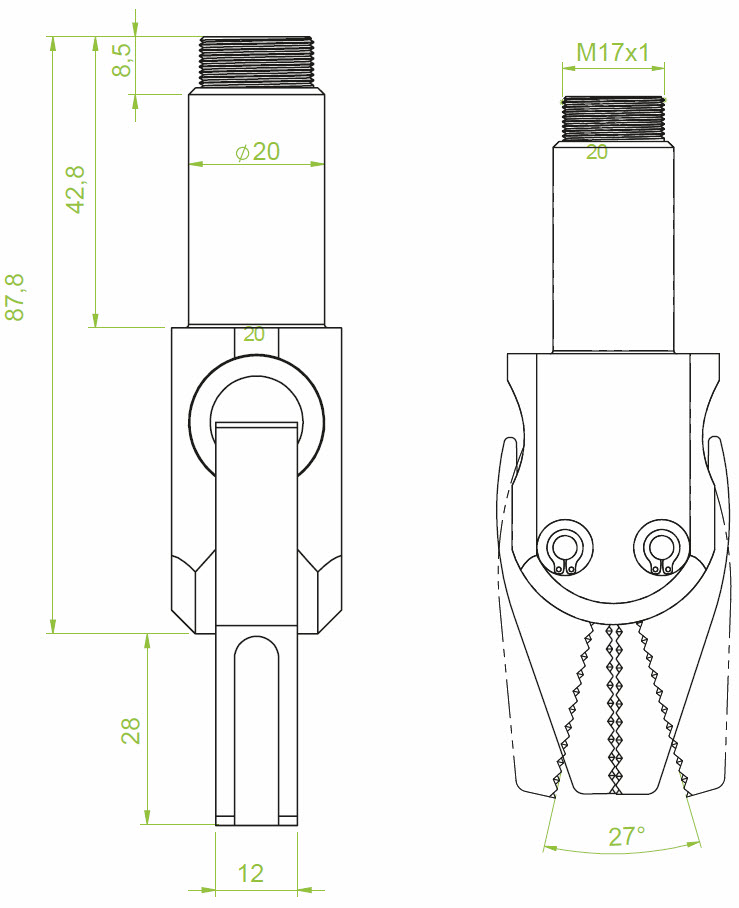

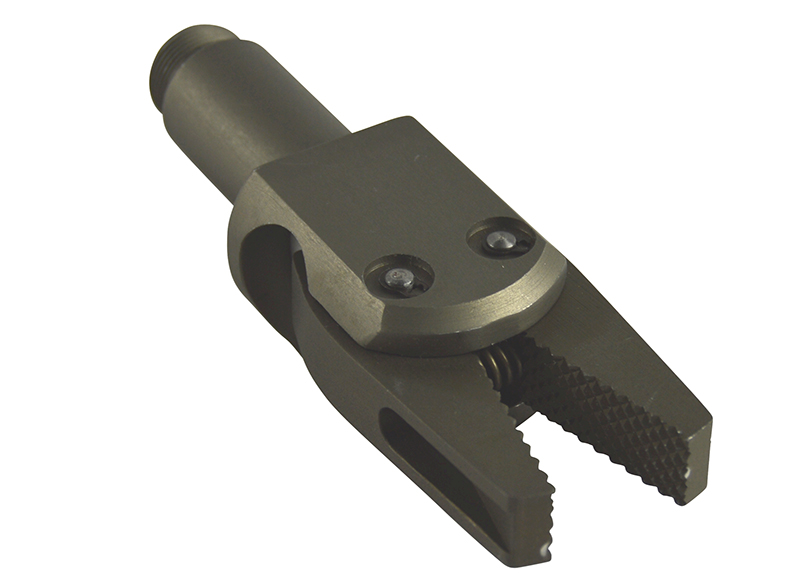

Model #: GK.20.012
(Gripper)
Gripper with standard jaws, single acting, NO, clamping D= 20 mm, air inlet female thr. G 1/8, grip force at 6 bar = 95 N force at 6 bar = 95 N.
|
£209.78
|
Gripper
|
87 PSI
|
95 N.
|
|
