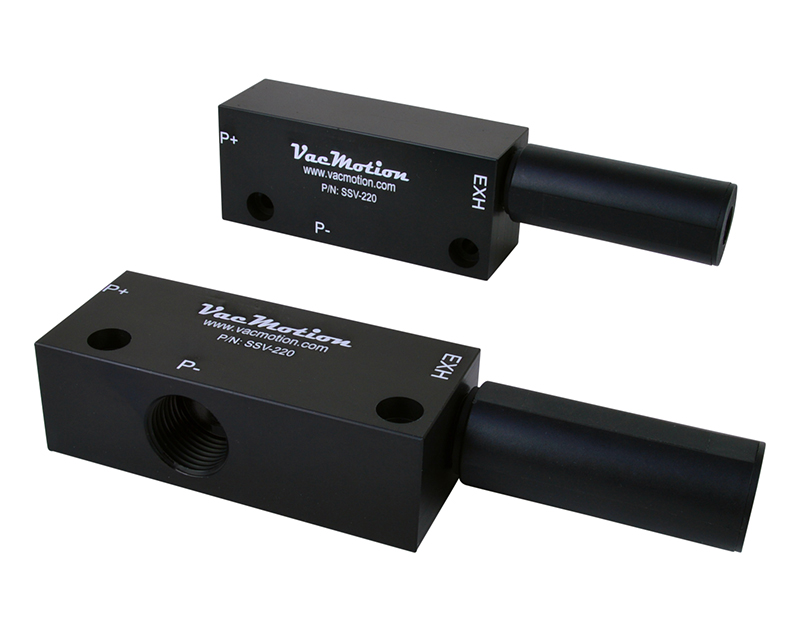

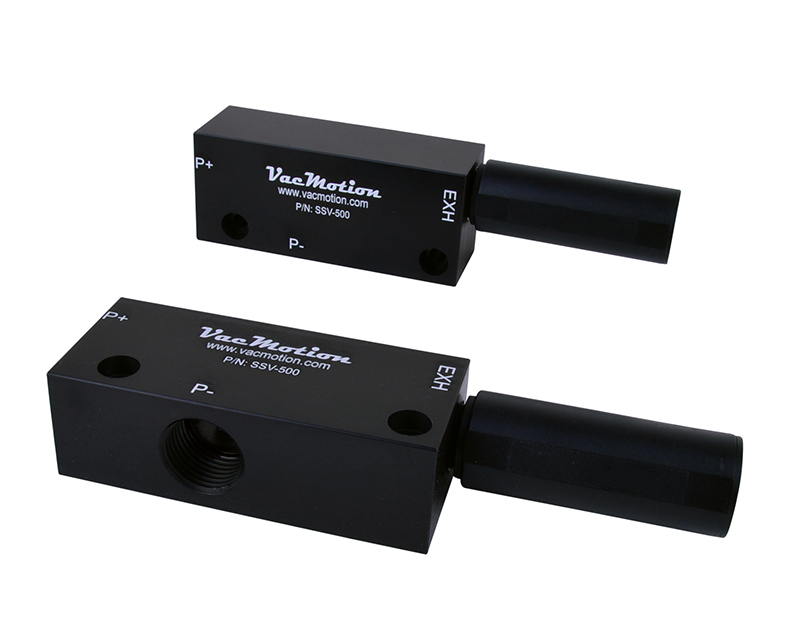

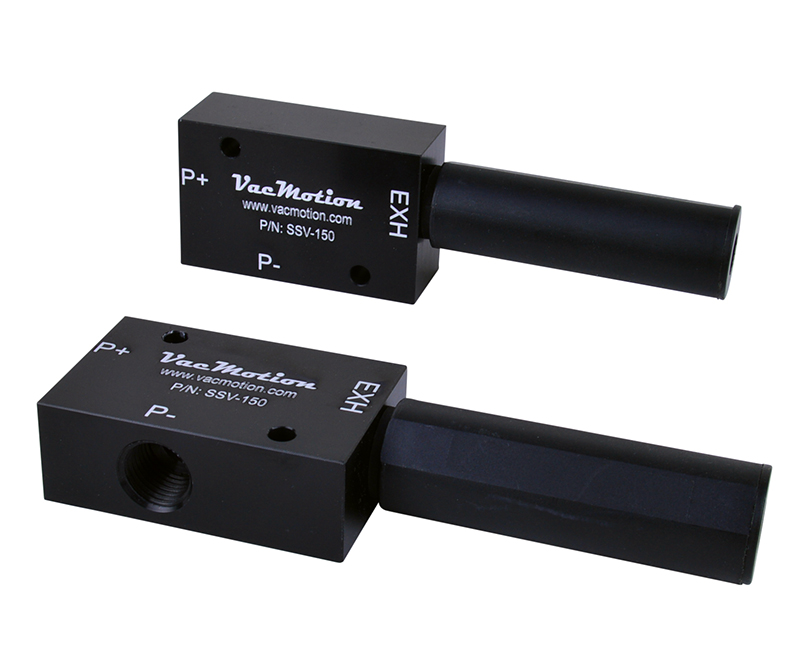

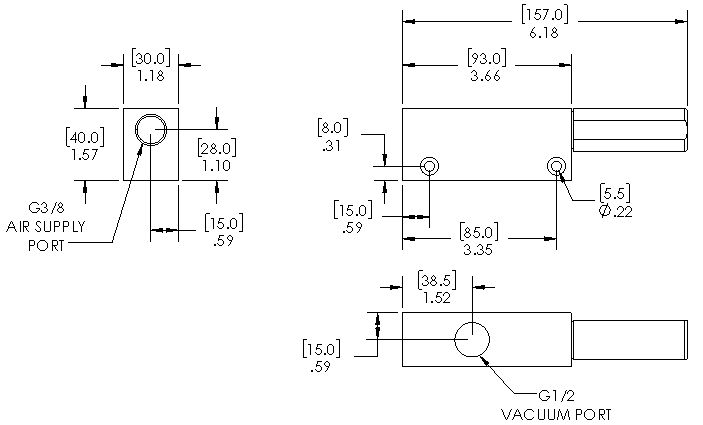

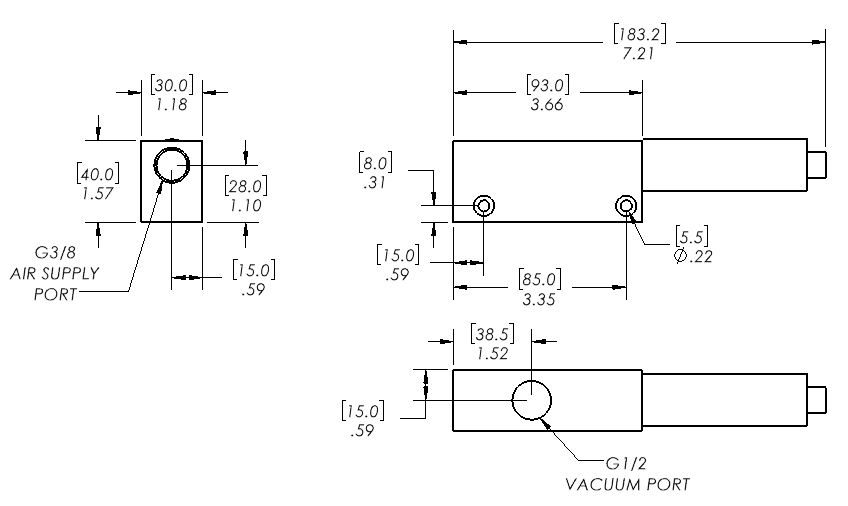

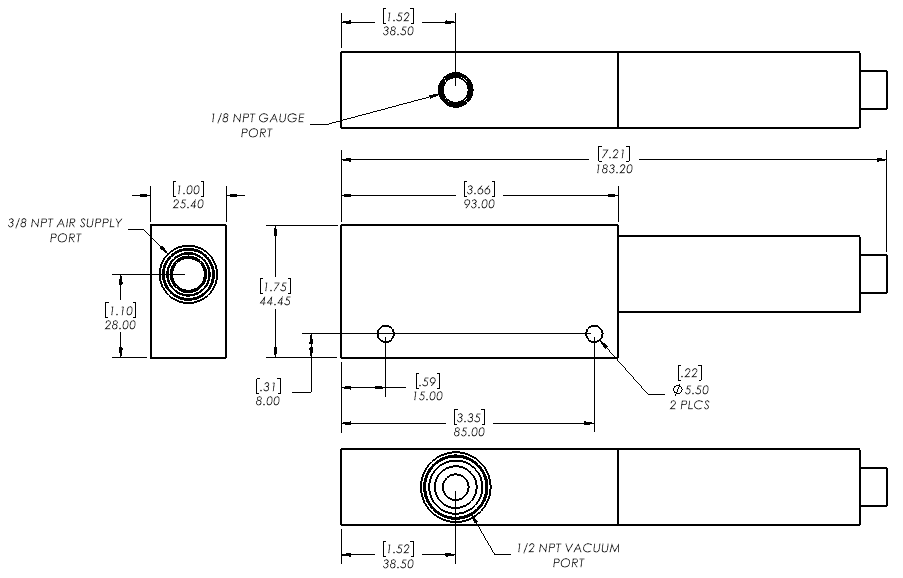

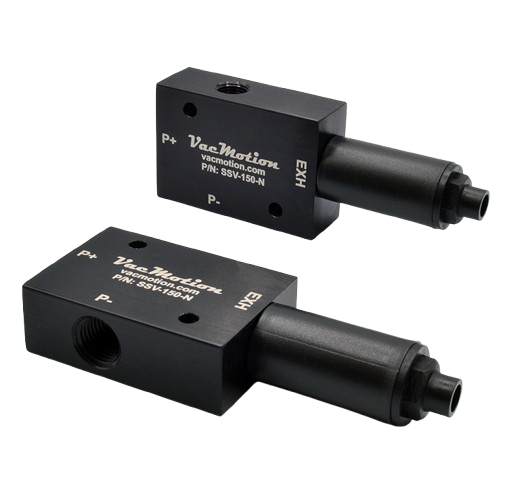

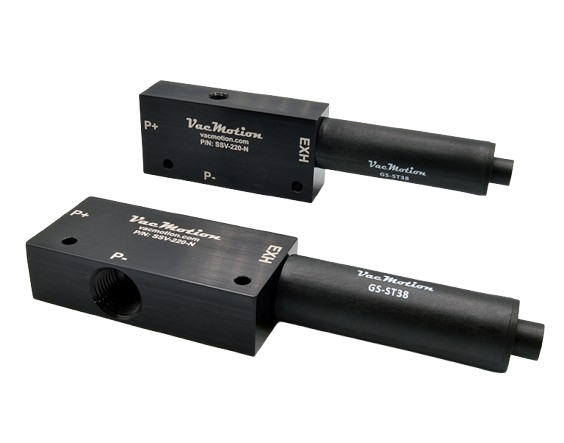

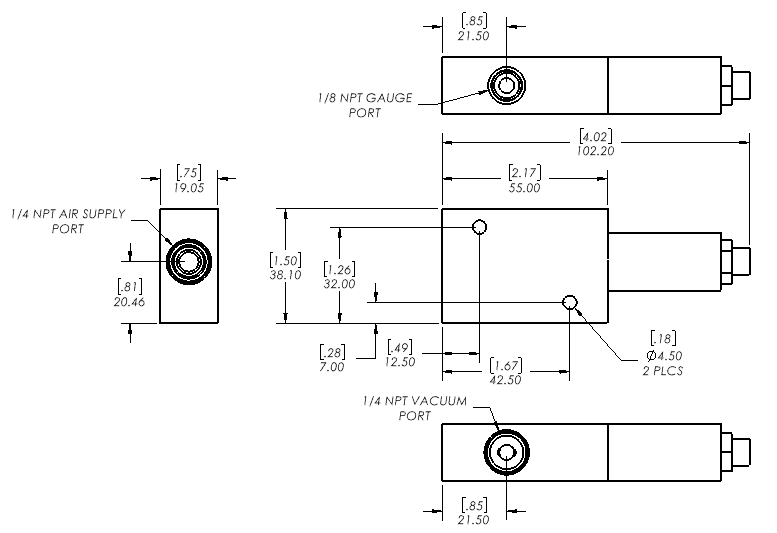

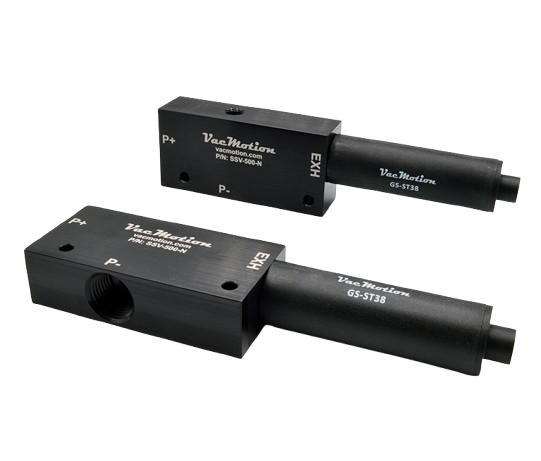

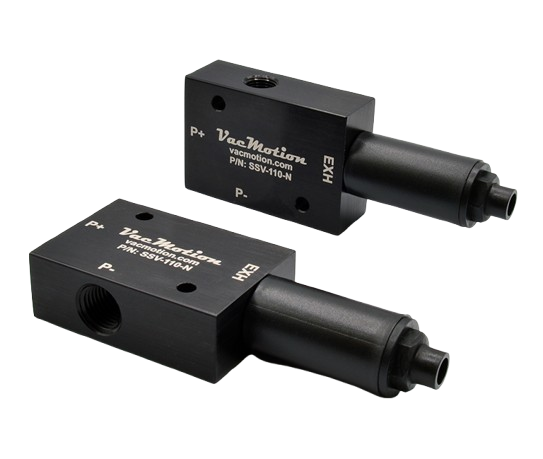

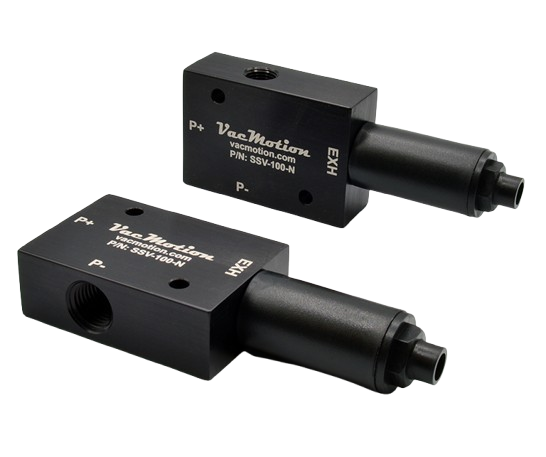

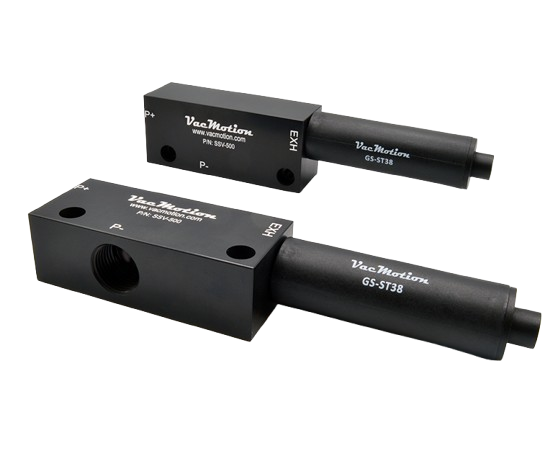

Home Products Company Product Videos                                           Log-in / Register Home > Products > Vacuum Generators > SSV Series (Results shown: 17) Regulator Image Description / Model # Price Type Vacuum Port Vacuum Flow Air Consumption Max Vac -"Hg Dimensional Drawing Model #: SSV-2.5 Mini vacuum generator. 0.088 scfm, max vacuum 25Hg £17.06 SSV Series M5 0.1 .25 25.0 Model #: SSV-14-M5 Compact inline vacuum generator with silencer. M5 supply and vacuum ports. 0.50 scfm £18.81 SSV Series M5 0.5 .50 26.0 Model #: SSV-21-G18 Compact inline vacuum generator with silencer. G1/8 supply and vacuum ports. 0.74 scfm £18.81 SSV Series G1/8" 0.7 .74 26.0 Model #: SSV-100 SINGLE STAGE VACUUM GENERATOR, 26.5Hg w/ Silencer £60.35 SSV Series G 1/4" 1.0 1.6 26.5 Model #: SSV-110 Single Stage Vacuum Generator, 26Hg w/ Silencer £62.50 SSV Series G 1/4" 1.1 1.6 26.0 Model #: SSV-150 Single Stage Vacuum Generator, 27Hg w/ Silencer £68.35 SSV Series G 1/4" 1.5 3.2 27.0 Model #: SSV-220 Single Stage Vacuum Generator, 27Hg w/ Silencer £133.15 SSV Series G 1/2" 2.2 5.9 27.0 Model #: SSV-500 Single Stage Vacuum Generator, 27Hg w/ Silencer £151.03 SSV Series G 1/2" 5.2 6.0 27.0 Model #: SSV-750 Single Stage Vacuum Generator, 27.5Hg w/ Silencer £188.25 SSV Series G 1/2" 7.5 12.9 27.5 Model #: SSV-825 Single Stage Vacuum Generator, 26Hg w/ Silencer £202.97 SSV Series G 1/2" 8.2 12.8 26.0 Model #: SSV-100-N Single Stage Vacuum Generator, 26Hg w/ Silencer , NPT, with 1/8 NPT gauge port £60.35 SSV Series 1/4" NPT 1.0 1.6 26.5 Model #: SSV-110-N Single Stage Vacuum Generator, 26Hg w/ Silencer , NPT, with 1/8 NPT gauge port £62.50 SSV Series 1/4" NPT 1.1 1.6 26.0 Model #: SSV-150-N Single Stage Vacuum Generator, 27Hg w/ Silencer , NPT, with 1/8 NPT gauge port £68.35 SSV Series 1/4" NPT 1.5 3.2 27.0 Model #: SSV-220-N Single Stage Vacuum Generator, 27Hg w/ Silencer, NPT, with 1/8 NPT gauge port £133.15 SSV Series 1/2" NPT 2.2 5.9 27.0 Model #: SSV-500-N Single Stage Vacuum Generator, 27Hg w/ Silencer, NPT, with 1/8 NPT gauge port £151.03 SSV Series 1/2" NPT 5.2 6.0 27.0 Model #: SSV-750-N Single Stage Vacuum Generator, 27.5Hg w/ Silence, NPT with 1/8 NPT gauge port £188.25 SSV Series 1/2" NPT 7.5 12.9 27.5 Model #: SSV-825-N Single Stage Vacuum Generator, 26Hg w/ Silencer, NPT, with 1/8 NPT gauge port £202.97 SSV Series 1/2" NPT 8.2 12.8 26.0 Loading. Please wait. Search product by attribute Search by product/model number Type: ANY Adjustable Vacuum Cartridge Style Classic Multi DSV DSV with valves Material Transfer Mini-Multi stage Multi-Stage Vacuum Generator Plastic In-Line Single Stage Vacuum Generator SSV Series SSV3/4 Series SSV with valves V-CV Style Vacuum Level: ANY 0-26 26-29.1 Vacuum Flow: ANY 0-5 6-20 21-40 41-100 101-200 201-500 Vacuum Port: ANY G1/8" 1/8" NPT G1/4" G1/2" G3/8" G3/4" G1" G1-1/2"                  Product number:
